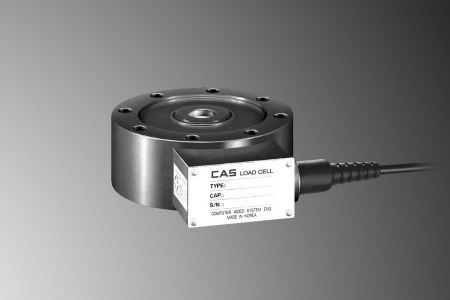

LS - Pan Cake Load Cell
Features:
- Paint finished steel construction
- Tension and compression Load Cell
- Hermetically sealed
- High reliability against fatigue and side force
- Ex ia IIC T4 Approved
Accessory Options:
- Accessory for compression
- Accessory for tension
- Ball type accessory
Specification:
| Capacity | kgf | 1, 2, 3, 5, 10, 20, 30, 50, 100, 200, 300 |
|---|
Rate Output
Zero Balance |
mV / V
mV / V |
2.0 ±0.005 / 3.0 ±0.0075(for 100, 200tf)
0.0 ±0.020 |
| Accuracy Class |
- |
D3 |
C3 |
Non-Linearity
Hysteresis
Combined Error
Repeatability
Creep for 30min.
Return for 30min.
Resolution
Division |
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
% R.O.
-
mV / V |
≤0.05
≤0.05
≤0.05
≤0.02
≤0.03
≤0.03
≤1/2000
0.001 |
≤0.02
≤0.02
≤0.02
≤0.01
≤0.03
≤0.03
≤1/5000
0.0004 |
Temperature
Effect on |
-Zero value
-Output Value |
%/10˚C
%/10˚C |
<0.03
<0.03 |
≤0.03
≤0.03 |
| Excitation |
-Recommended
-Maximum |
V
V |
10
15 |
| Resistance |
-Input
-Output
-Insulation |
Ω
Ω
MΩ |
350 ±3.5
350 ±3.5
>2000 |
Compensated Temerature Range
Operating Temperature Range |
˚C
˚C |
-10 to +40
-30 to +80 |
| Material & Plate |
- |
Paint Finished Steel |
| Cable Specification |
- |
ø8 x 4Px 5M(10M) |
| Safety Overload |
% R.L. |
150% R.L. |
| Platform Size |
mm |
No Platform Type |
