CCK-600A/CCK-2000A : CHECKWEIGHER
Features
- Best-in-class performance
- Dustproof waterproof IP65 grade
Weight sorter realizing simplicity and high precision

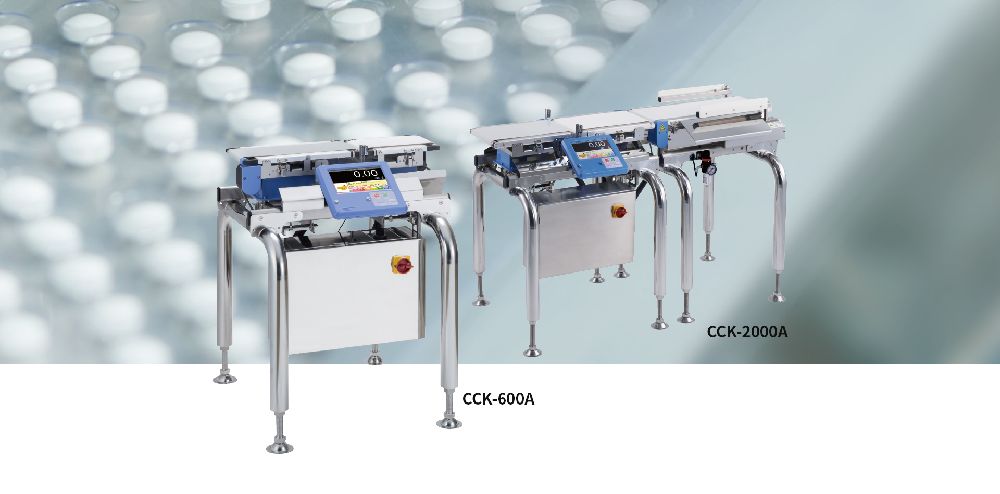

CCK-600A/CCK-2000A
01.Best-in-class performance
It achieved best-in-class sorting accuracy (3o): 0.08g by a newly developed digital load cell and a control box equipped with a CPU of high processing speed.

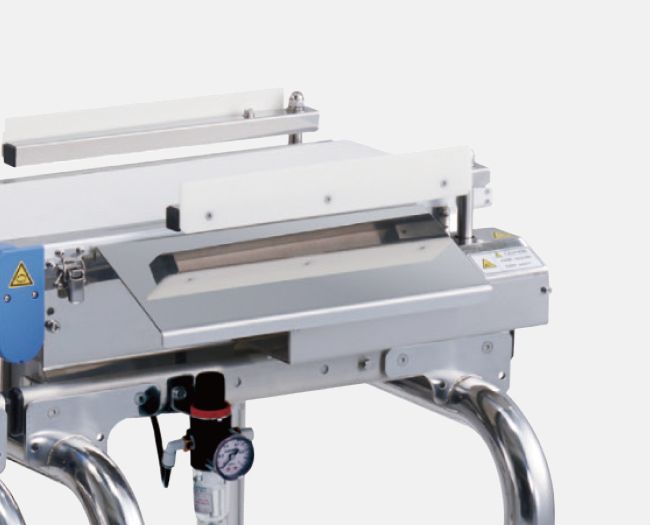

02.Dust and waterproof IP65 rating
03.Display and memory

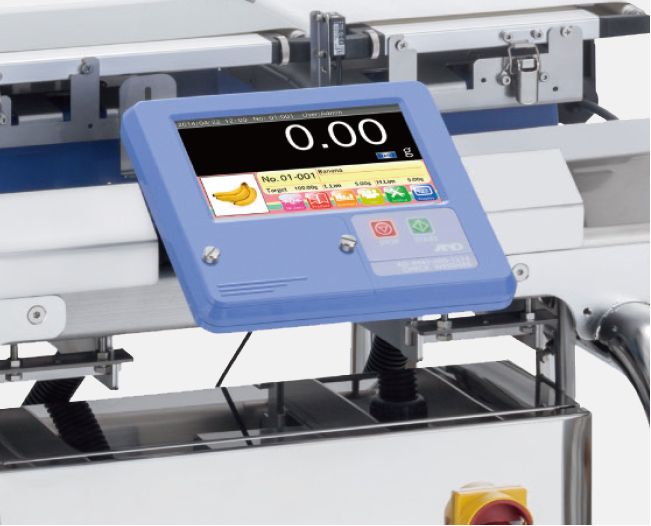

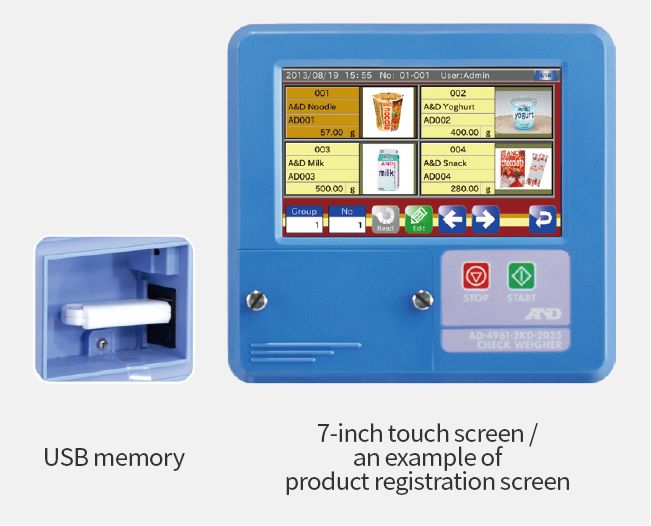

(1) 7 inch touch screen
The display unit adopts a 7-inch LCD touch screen and has a user-oriented graphic interface (with voice guidance function).
(2) Insertion of images through USB memory
You can easily insert the product image through the USB memory, with which you can easily recognize the product.
(3) Saving up to 1000 products
Products are divided into 10 groups, and up to 100 products can be registered in each group.
04.Input/output/communication available

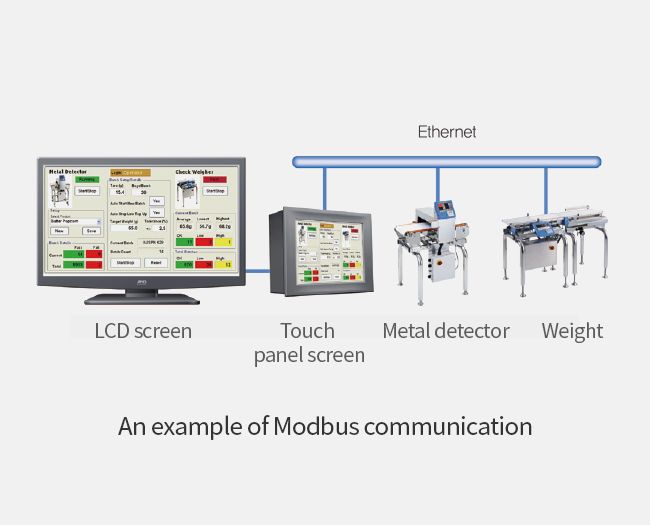

(1) Modbus communication
Modbus RTU/Modbus TOP is basically installed
Communication can be easily made through Modbus. Operation start, stop, aggregate data, and product number change can be set from an external device.
(2) Various input/output
Selective output, alarm output, metal detection input, RS-232C TCP/IP. USB interface is basically installed so that data can be saved to USB memory or
sent to a printer.

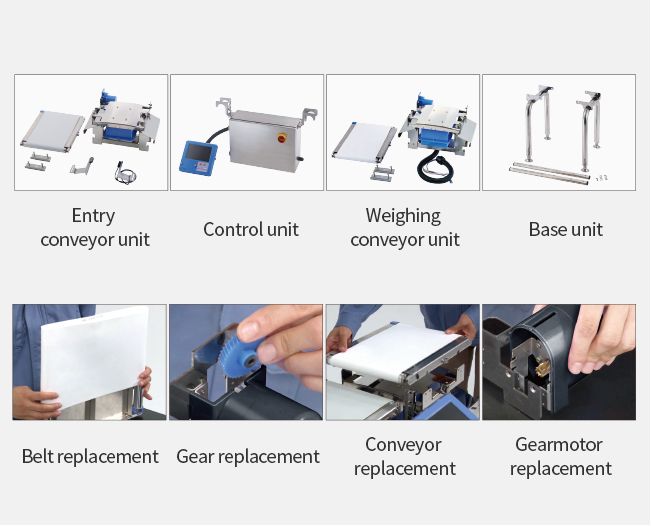

05.Easy maintenance unit
The body is unitized, and just necessary units can be repaired or replaced. So, transportation effort and cost are reduced, and the maintenance is easy.

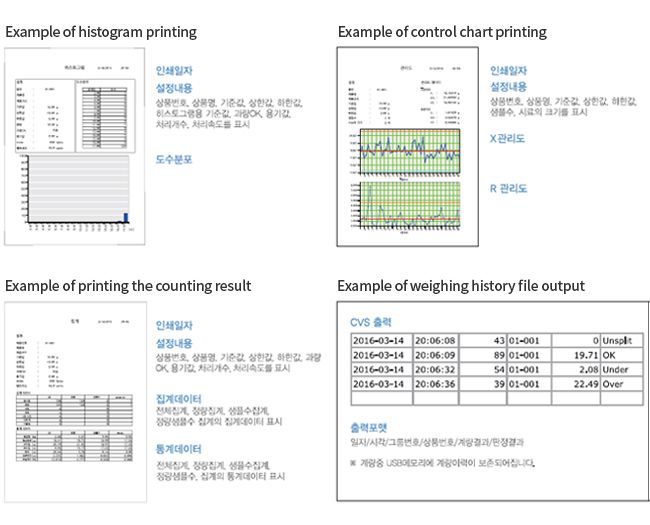

06.Checkweigher with various outputs of counting results
After weighing is completed, it displays the aggregate screen of data to be saved. When the PDF key is pressed on the aggregate screen, it will transfer the
PDF file to the USB memory.
